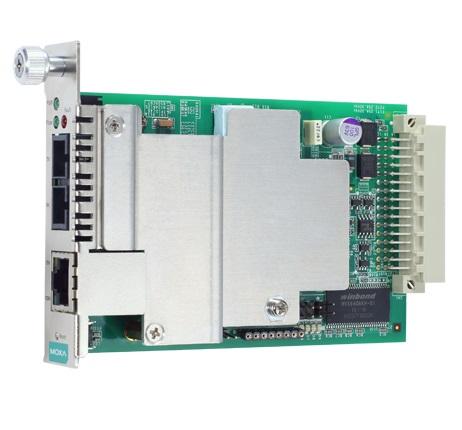

CSM-400 Serie - 10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System
Features
- LFP (Link Fault Pass-through) and FEF (Far End Fault)
- Supports Store-and-Forward mode and Pass Through mode
- Auto Negotiation
- Supports IEEE 802.3AH OAM protocol
- Plug and Play
- Hot-swap
- IP-based remote management
- Supports WDM type modules
Introduction
The CSM-400 modules are slide-in Ethernet-to-fiber managed media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack System™ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
Operating Temperature: Standard Models: -20 to 55°C (-4 to 131°F)
(-T)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
